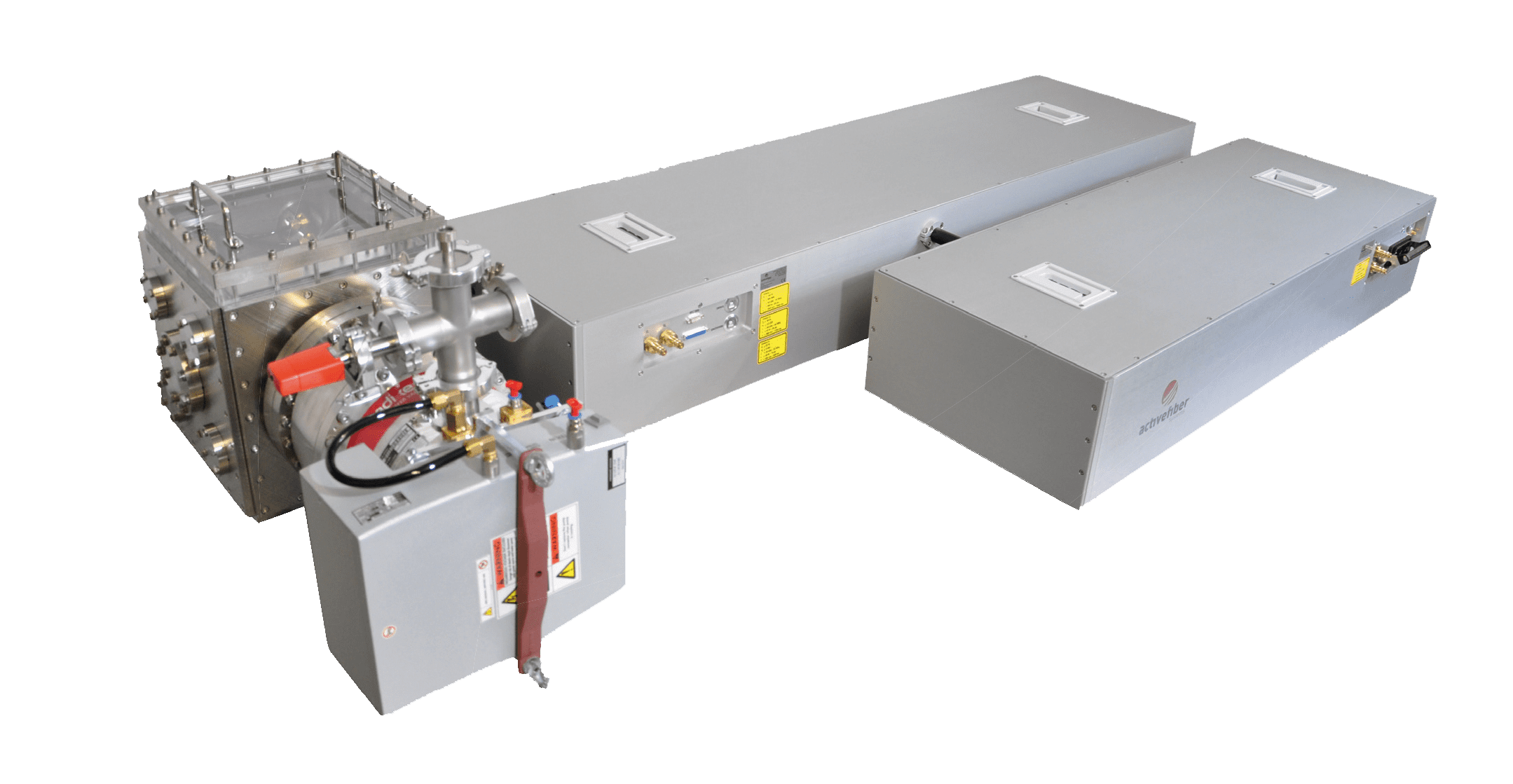

High-power XUV beamlines

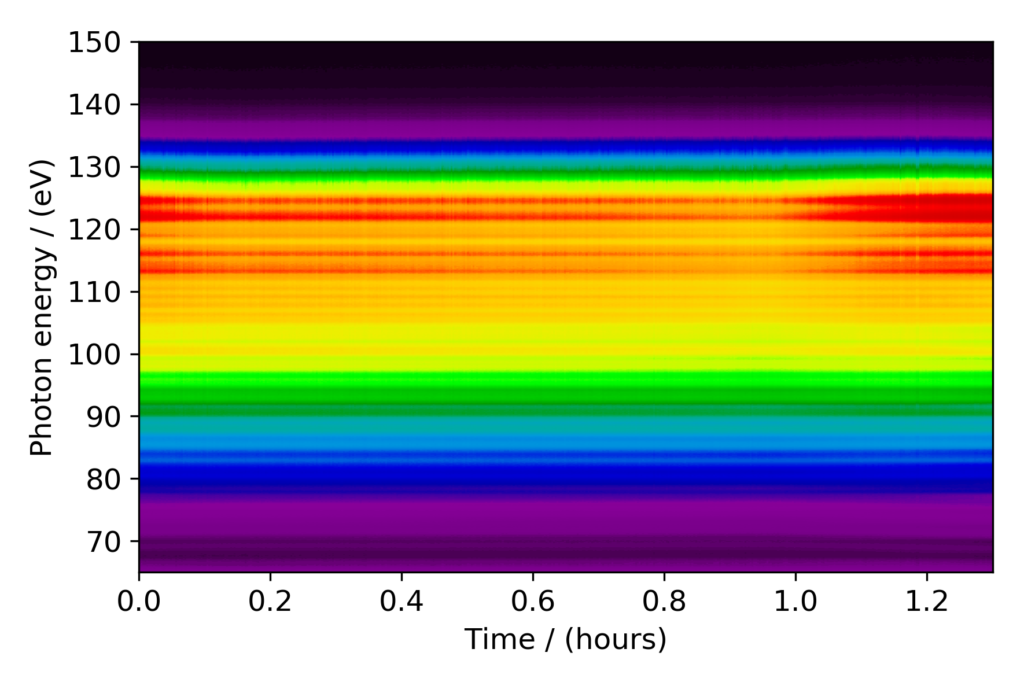

Sources of short-wavelength radiation, such as synchrotrons or free-electron lasers, have already enabled numerous applications and will facilitate more seminal studies. On the other hand, sources of coherent extreme ultraviolet to soft x-ray radiation via high-harmonic generation (HHG) of ultrashort-pulse lasers have gained significant attention in the last years due to their enormous potential to address a plethora of applications in a cost-effective and tabletop format. Therefore, they constitute a complementary source to large-scale facilities. The photon-flux values obtained by fiber-laser-driven HHG sources can be considered the highest of all laser systems for photon energies between 20 eV – 150 eV. Even higher photon energies up to the soft X-ray regime are feasible using Tm-based driving lasers.

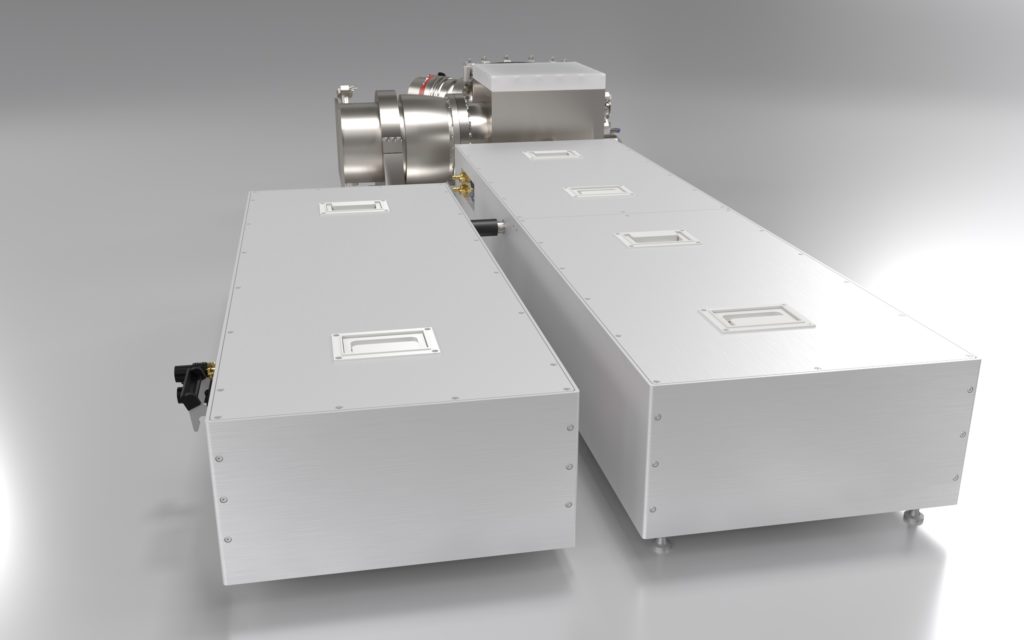

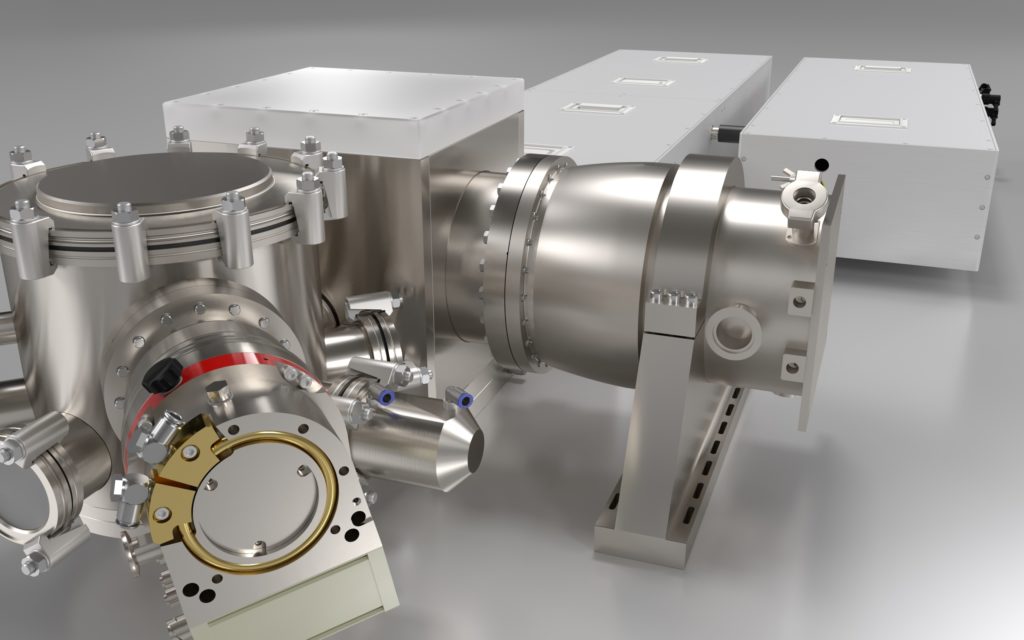

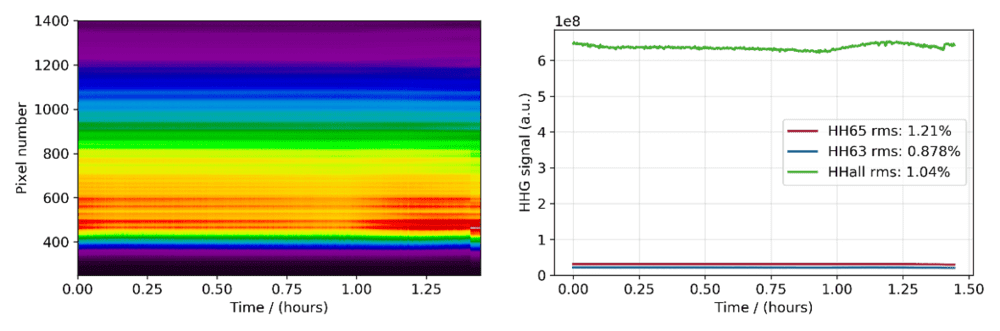

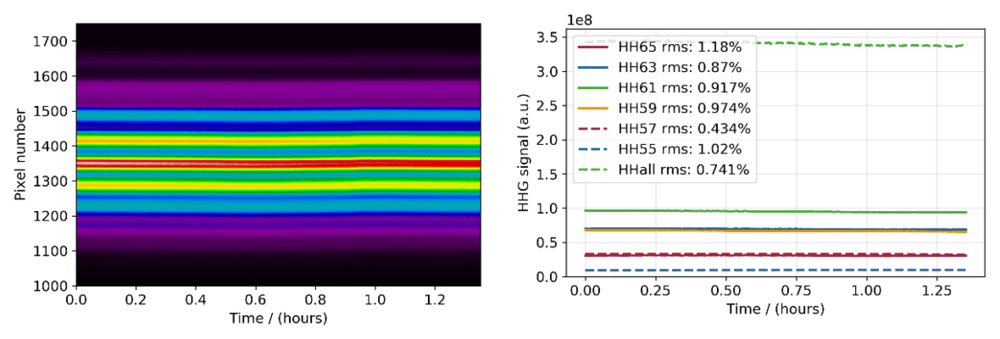

AFS ultrafast fiber lasers are ideal high-harmonic drivers. These turnkey HHG beamlines can address several applications in the EUV to X-ray spectral region.
View in AR-App

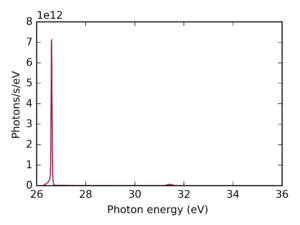

|Parameter||Accessible parameter ranges||Possible Addons|
|Photon energy||20eV ... >150eV||Monochromatization:|
Pick the harmonic you want. Can be adjustable to pick multiple different lines.
|Wavelength||60nm ... <8.5nm|
|Photon flux per harmonic||up to 1015 photons/s/harmonic (depending on harmonic)||Dual-color driver:|
Generate harmonics with multiple driving laser wavelengths (e.g. 1030nm & 515nm) at the same time or switch between both drivers during an experiment on the same optical path
|Average power per harmonic||up to 10mW (depending on harmonic)|
|Repetition rate||flexible, up to 10MHz||Focusing:|
Our radiation has an excellent beam quality and can be focussed as tightly as needed. Down to a few µm have been realized.
|Pulse duration||shorter than pulse duration of input laser pulse (down to few fs)|
|Spectral bandwidth||can remain close to transform limit with flexible bandwidths (down to <10meV)||Differential pumping:|
Target chambers often have strict requirements on the pressure. We can use the focusing section of the beamline to reduce the pressure down to <109mbar or less
|Dimension of HHG chamber||80cm × 40cm × 40cm||Spectrometer:|
It is always helpful to know the exact XUV spectrum during your experiments. Therefore, we offer integrated spectrometer modules enabling online spectral measurement simultaneous to your experiements.
|Vacuum connections||typically KF-40, can be adapted to customer preferences|
|Additional features||turn-key reliability high stability, all parameters software-controlled|
