Compact, alignment-free and all-fiber picosecond laser source for CARS microscopy delivering synchronized pump and Stokes pulses from a single fiber end. This air-cooled and turn-key CARS laser source has a great benefit for the user as the fiber delivery eliminates alignment of the spatial and temporal pulse overlap.
High-quality and high-speed microscopic multimodal nonlinear imaging is possible by e.g. simultaneously probing the CARS CH-vibrational-levels of lipids around 2850 cm-1, the second harmonic generation (SHG) and the two-photon excited fluorescence (TPEF) signals.
Applications
- CARS spectroscopy and microscopy
- Microscopic multi-modal nonlinear imaging (CARS, SHG, TPEF)
- SRS microscopy
View in AR-App
![qr](https://www.afs-jena.de/images/qr.png)
- SPECIFICATIONS
- PERFORMANCE
- DOWNLOADS
- CONTACT
The following specs show a range of what is possible. Please contact us with your desired specifications and we happily customize a system exactly to your needs.
DWFL-2022s | DWFL-2022i | DWFL-2010 | DWFL-2010-SRS | |

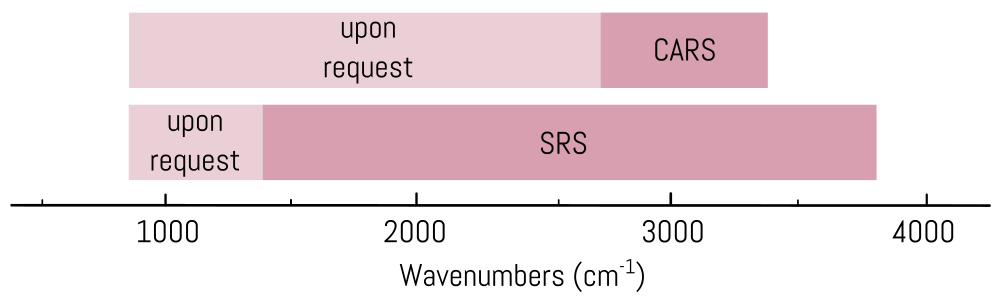

Tuning range (wavenumbers) | 600 cm-1 ... 2250 cm-1 | 2750 cm-1 ... 3150 cm-1 | 600 cm-1 ... 3300 cm-1 | |
Output wavelength range (pump) | 845nm...992nm | 1039nm...1053nm | 775nm...806nm | Typically between 600nm and 1100nm |
Output wavelength range (Stokes) | 1027nm...1033nm | 1039nm...1053nm | 1120nm...1350nm | Typically between 600nm and 1100nm |
Spectral width 1 (pump) | <15cm-1 | <6cm-1 | <45cm-1 | <15cm-1 |
Spectral width 2 (Stokes) | <6cm-1 | <3cm-1 | <15cm-1 | <10cm-1 |
Repetition rate (pump) | Typically 10MHz | 18MHz | ||
Repetition rate (Stokes) | Typically 10MHz | 36MHz | ||
Tuning speed | <5s (full range) | |||
Average power (pump) | >50mW | >100mW | >100mW | ≥200mW |
Average power (Stokes) | >100mW | >30mW | >150mW | ≥500mW |
Average power stability | <1.5% RMS over 1h | |||
Pulse duration (pump) | ≤30ps | ≤70ps | ≤40ps | |
Pulse duration (Stokes) | ≤70ps | ≤30ps | ≤40ps | |
Polarization | Linear | |||
Beam quality (pump & Stokes) | M² < 1.3 (fiber-coupled) | M² < 1.3 | ||
Spatial overlap | Overlapped or independent outputs possible | |||
Temporal overlap | Passively overlapped or actively adjustable to compensate dispersion effects in attached microscope | |||
SRS extension | Available as options RIN < -145dBc/Hz at frep/2 | - | - | Available as options RIN < -145dBc/Hz at frep/2 |
Power tunability | Outputs can be tuned independently from 0 to full power while maintaining pulse duration and bandwidth | |||
Warm-up time after system start | <1min | |||
Control interface | Software, RS232, USB, customizable | |||
Dimensions (W × D × H) | approx. 400mm × 350mm × 150mm | approx. 750mm × 750mm × 250mm | ||
Mass | <20kg | <70kg | ||
Power consumption / Cooling | <500W | |||
Cooling | air-cooled |

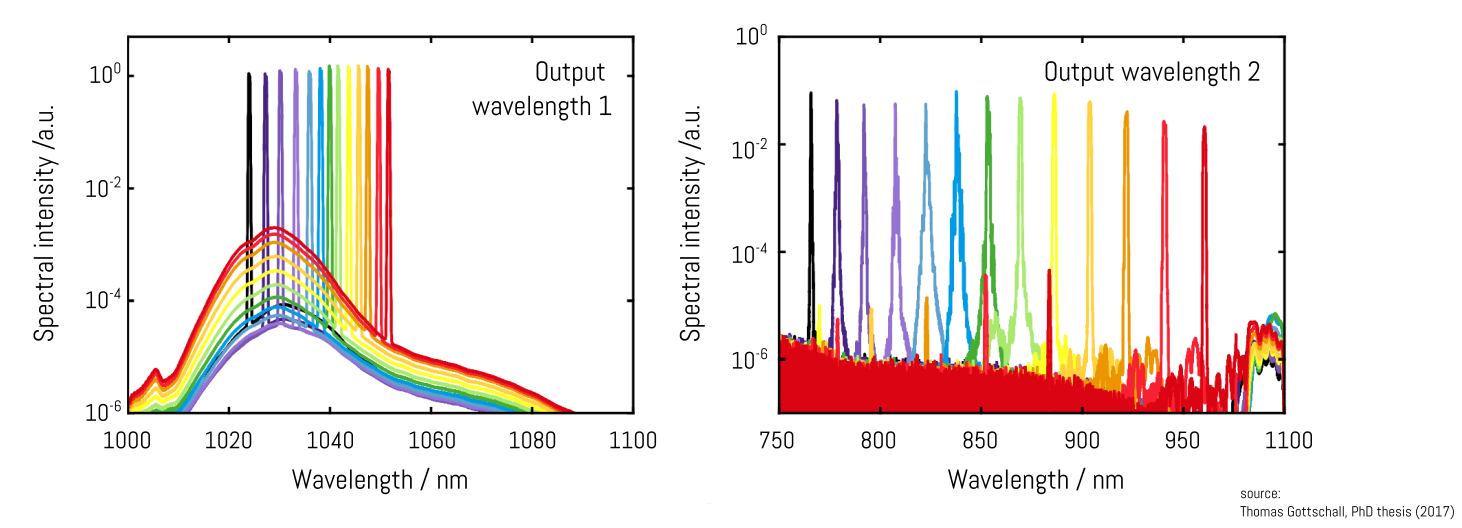

![Typical output spectra 1 & 2](https://www.afs-jena.de/images/spectra_outputWvl12_AFS.png)

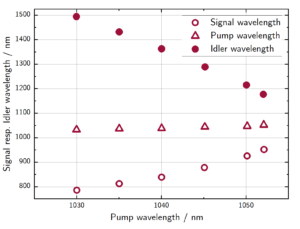

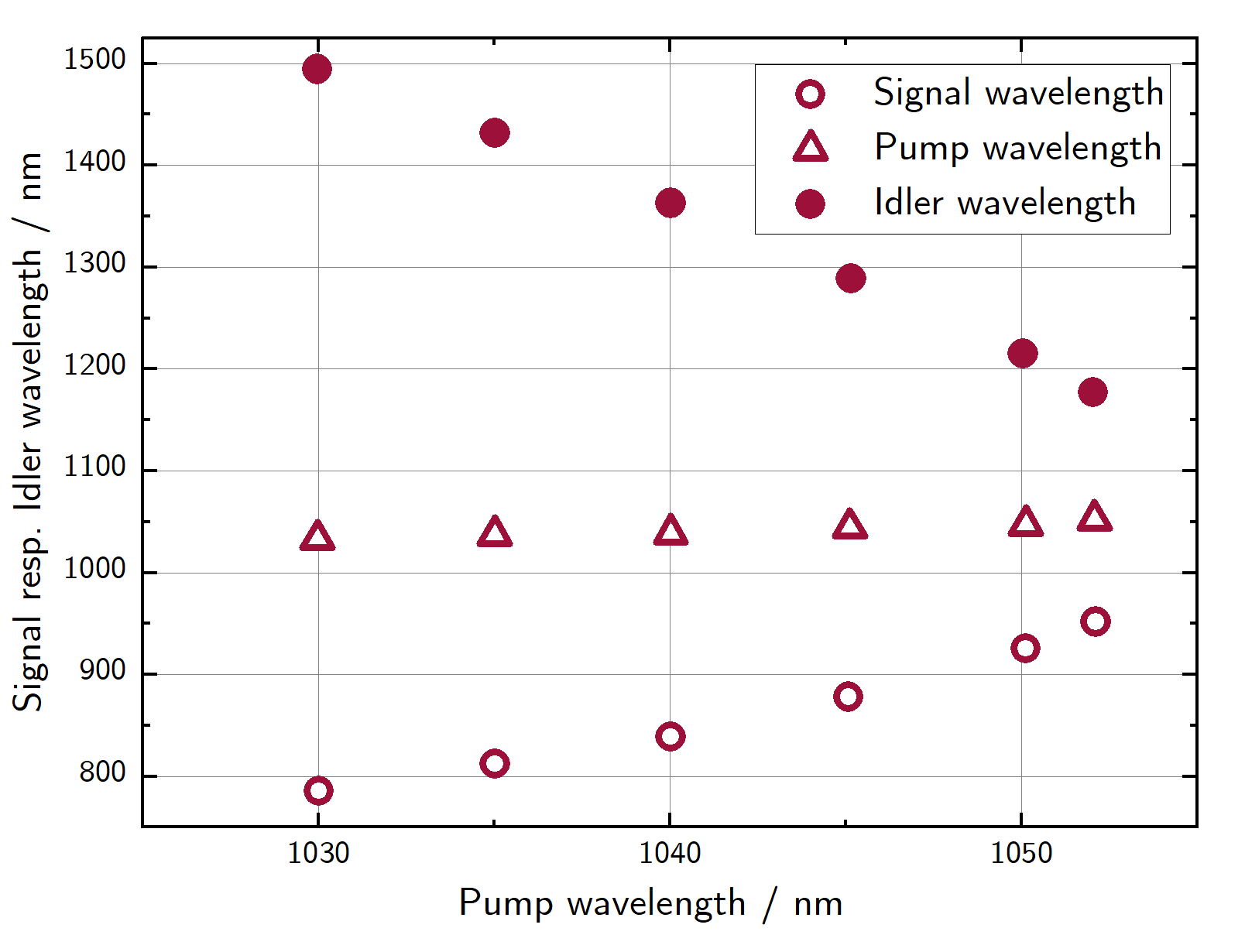

![signalIldlerWvl](https://www.afs-jena.de/images/signalIdlerWvl-300x229.png)

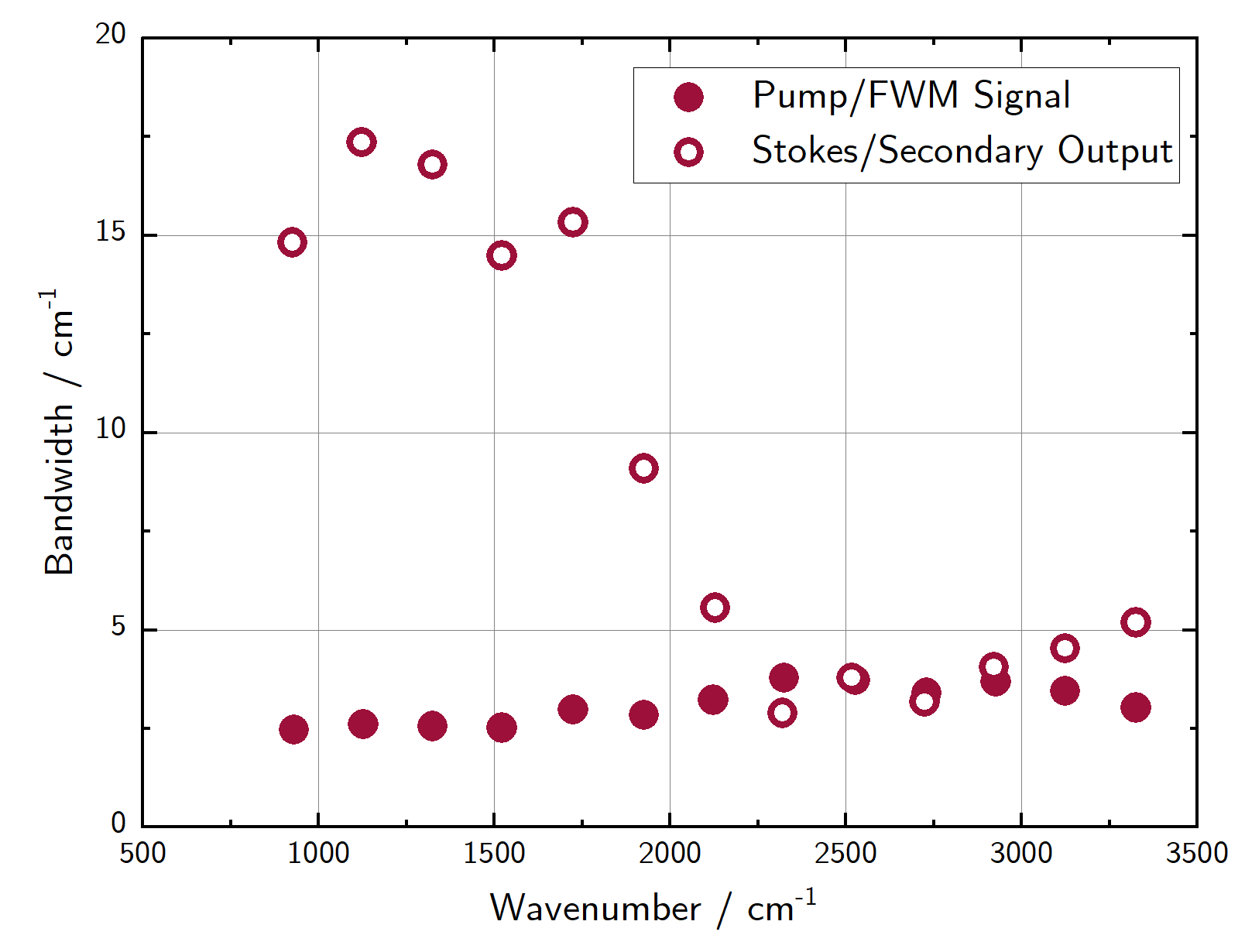

![bandwidth](https://www.afs-jena.de/images/bandwidth-300x229.png)

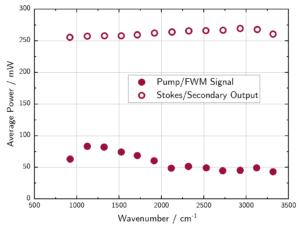

![averagePower](https://www.afs-jena.de/images/averagePower-300x229.png)

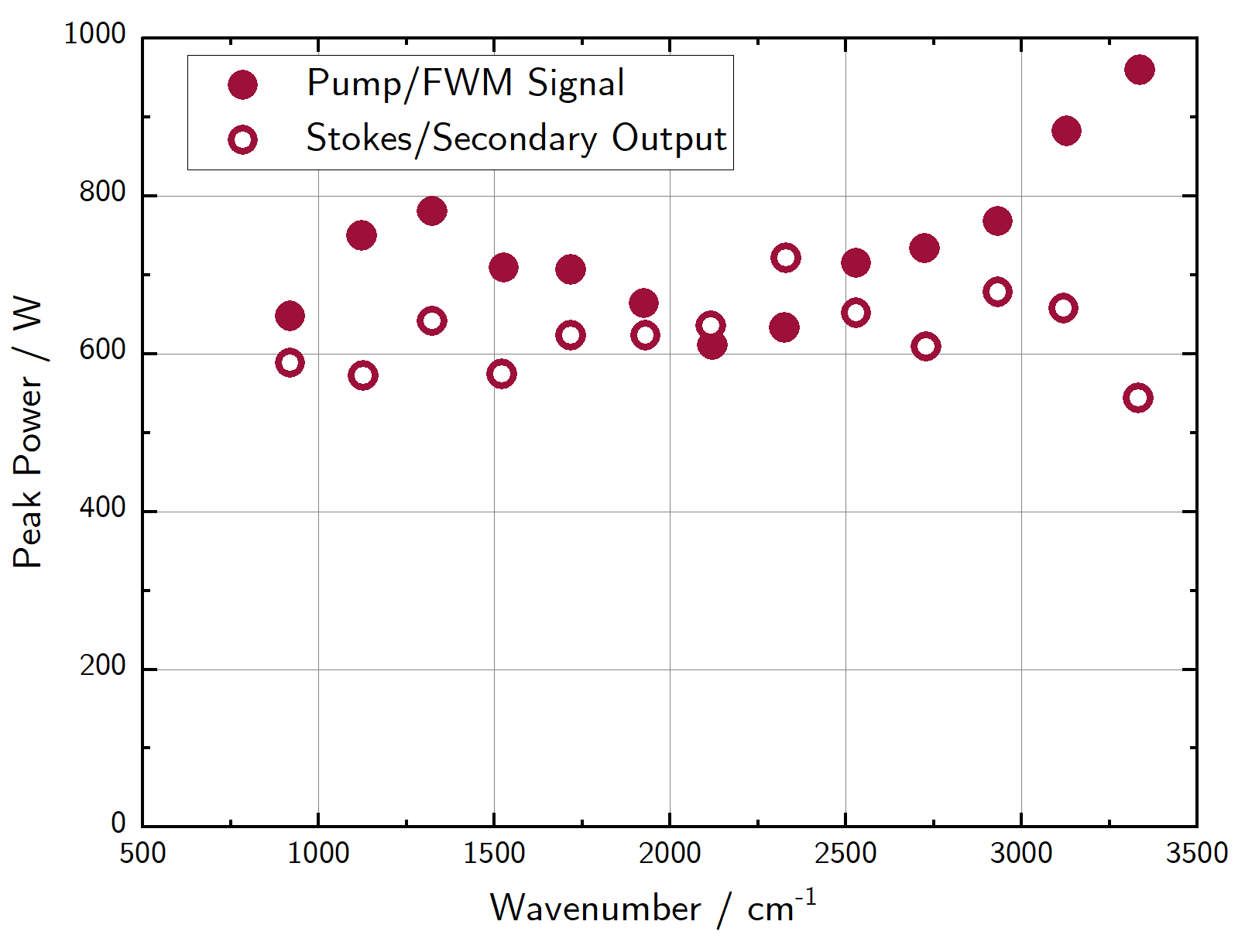

![peakPower](https://www.afs-jena.de/images/peakPower-300x229.png)

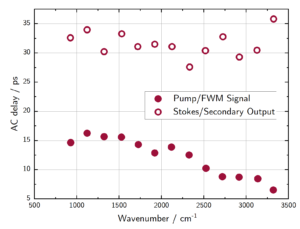

![ACdelay](https://www.afs-jena.de/images/ACdelay-300x229.png)
![CARS-TPEF-SHG](https://www.afs-jena.de/images/CARS-TPEF-SHG.jpg)

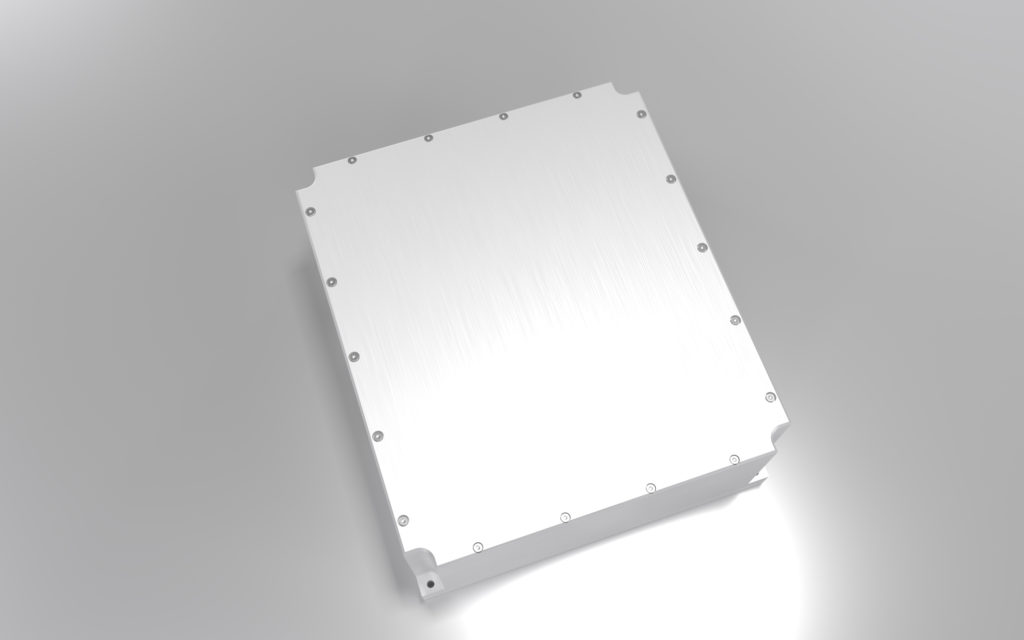

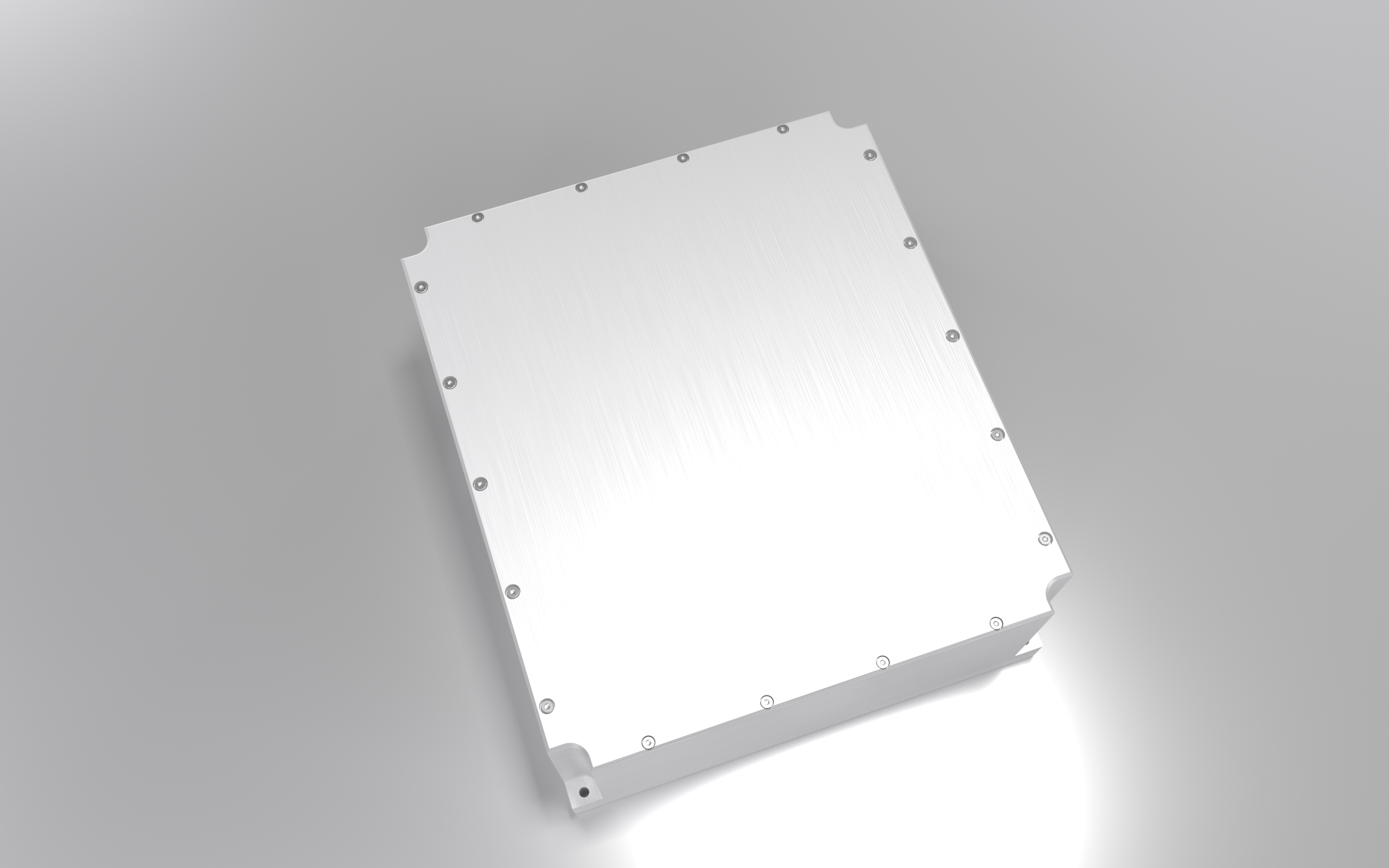

![DWFL_CARS](https://www.afs-jena.de/images/14c58d6e-1b41-4038-9952-3220f27d1c01-1024x640.jpeg)

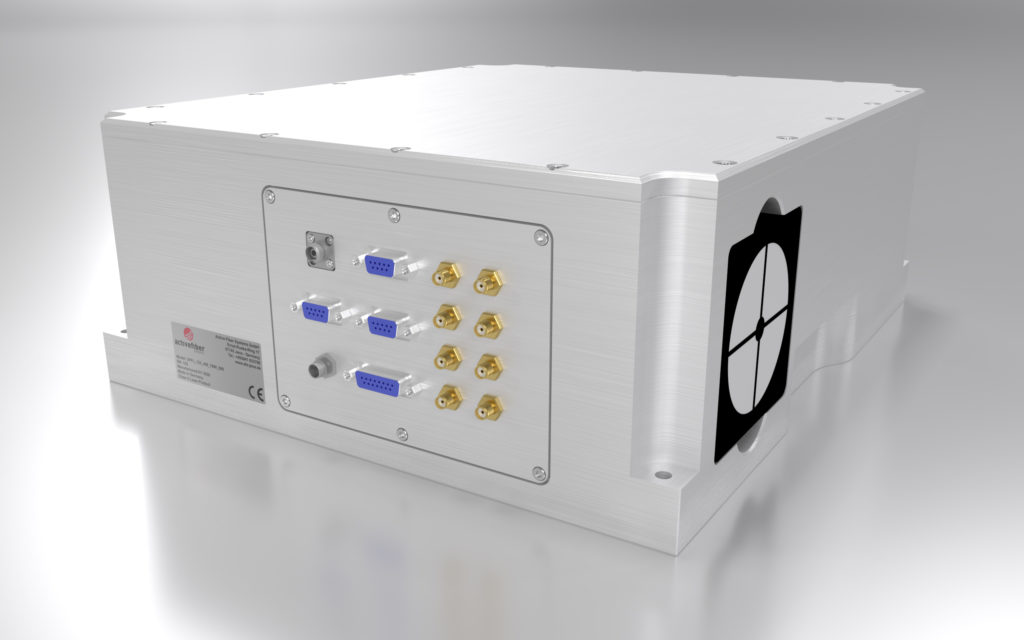

![DWFL_CARS](https://www.afs-jena.de/images/59922ee5-baa5-44e8-91fb-2d1723653942-1024x640.jpeg)

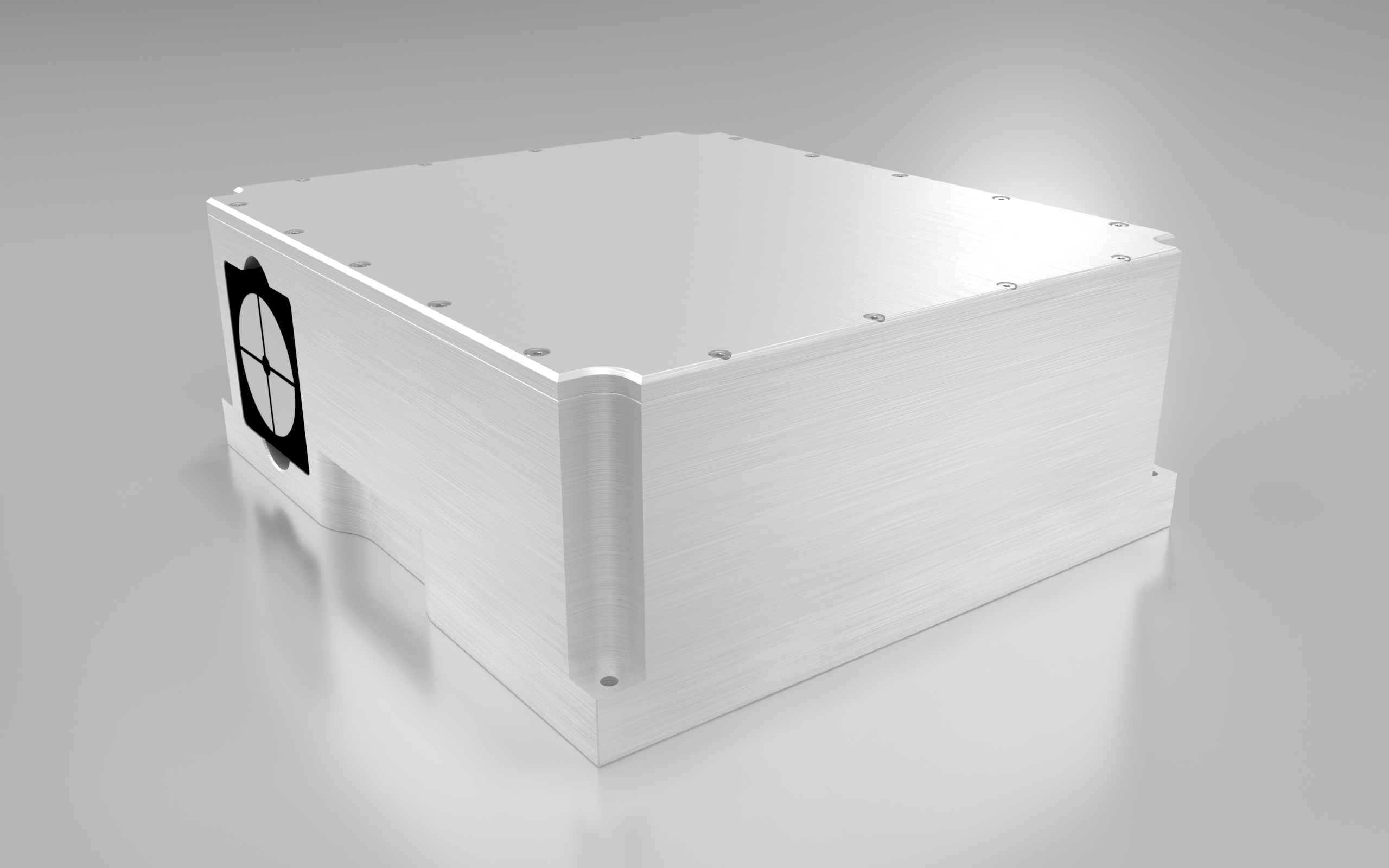

![DWFL_CARS](https://www.afs-jena.de/images/ae14f802-5a22-4a6f-9b94-4af63d0c6631-1024x640.jpeg)

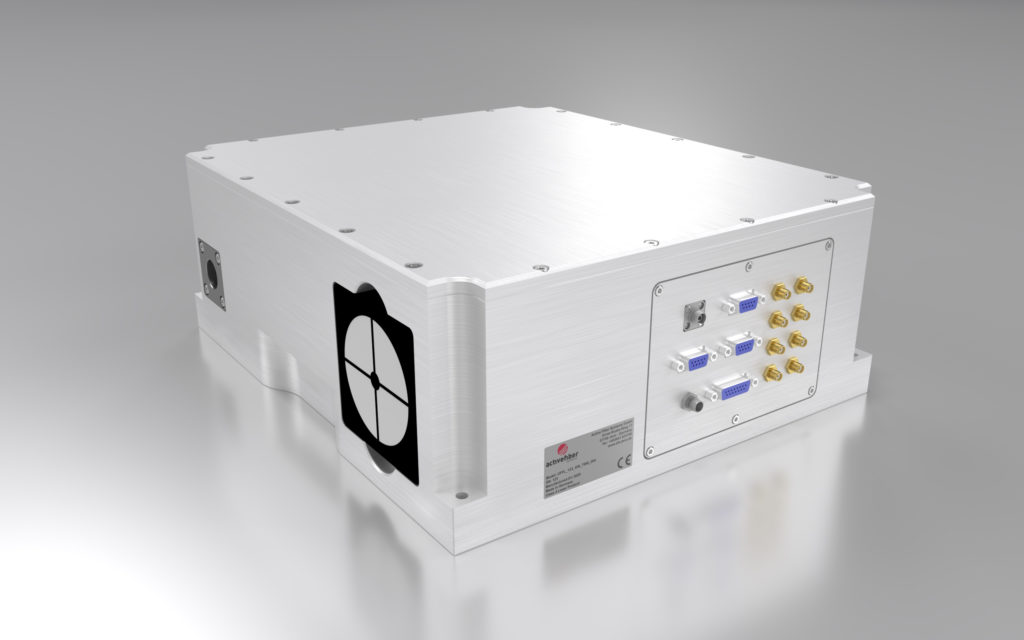

![DWFL_CARS](https://www.afs-jena.de/images/e5e29c07-baf5-441b-abd2-13273f2da099-1024x640.jpeg)
![DWFL_SRS](https://www.afs-jena.de/images/854f71ca-54c4-4dfd-99cd-3e2df9f3bf44-1024x640.jpeg)

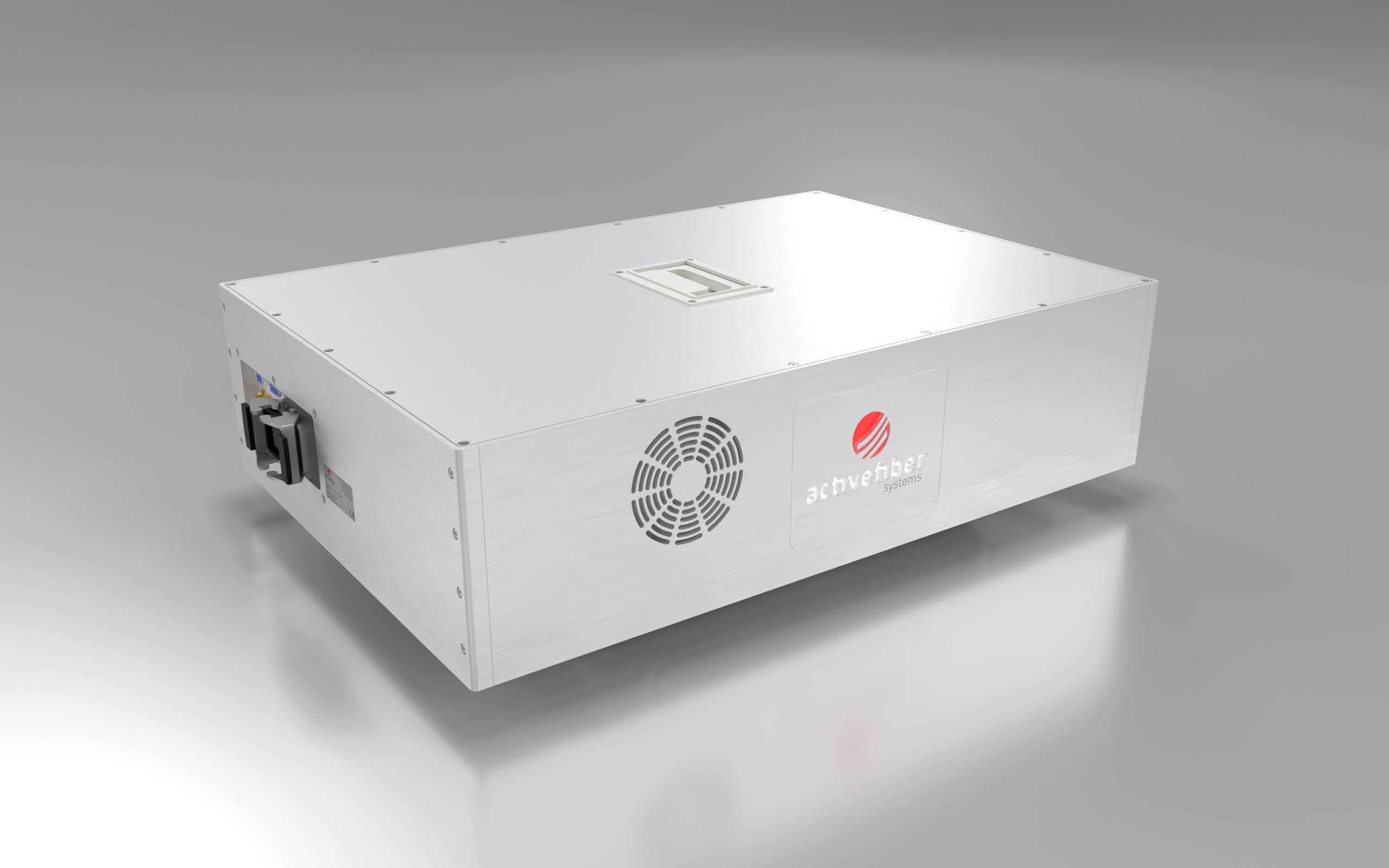

![DWFL_SRS](https://www.afs-jena.de/images/c2fc383c-9ea4-42a3-b344-d3f73a229e17-1024x640.jpeg)

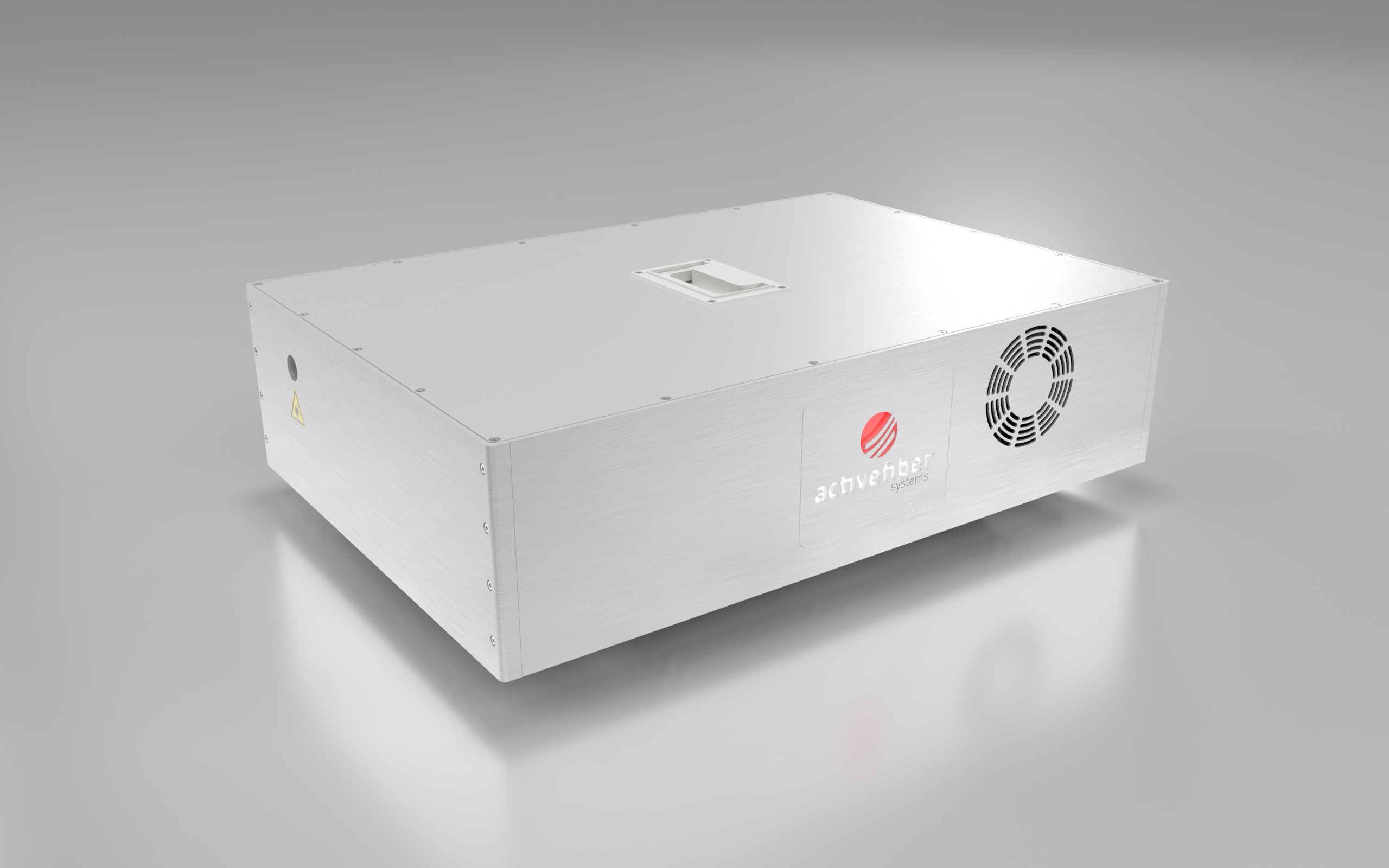

![DWFL_SRS](https://www.afs-jena.de/images/d5621c0f-5e78-48db-84f5-104038eb3cca-1024x640.jpeg)

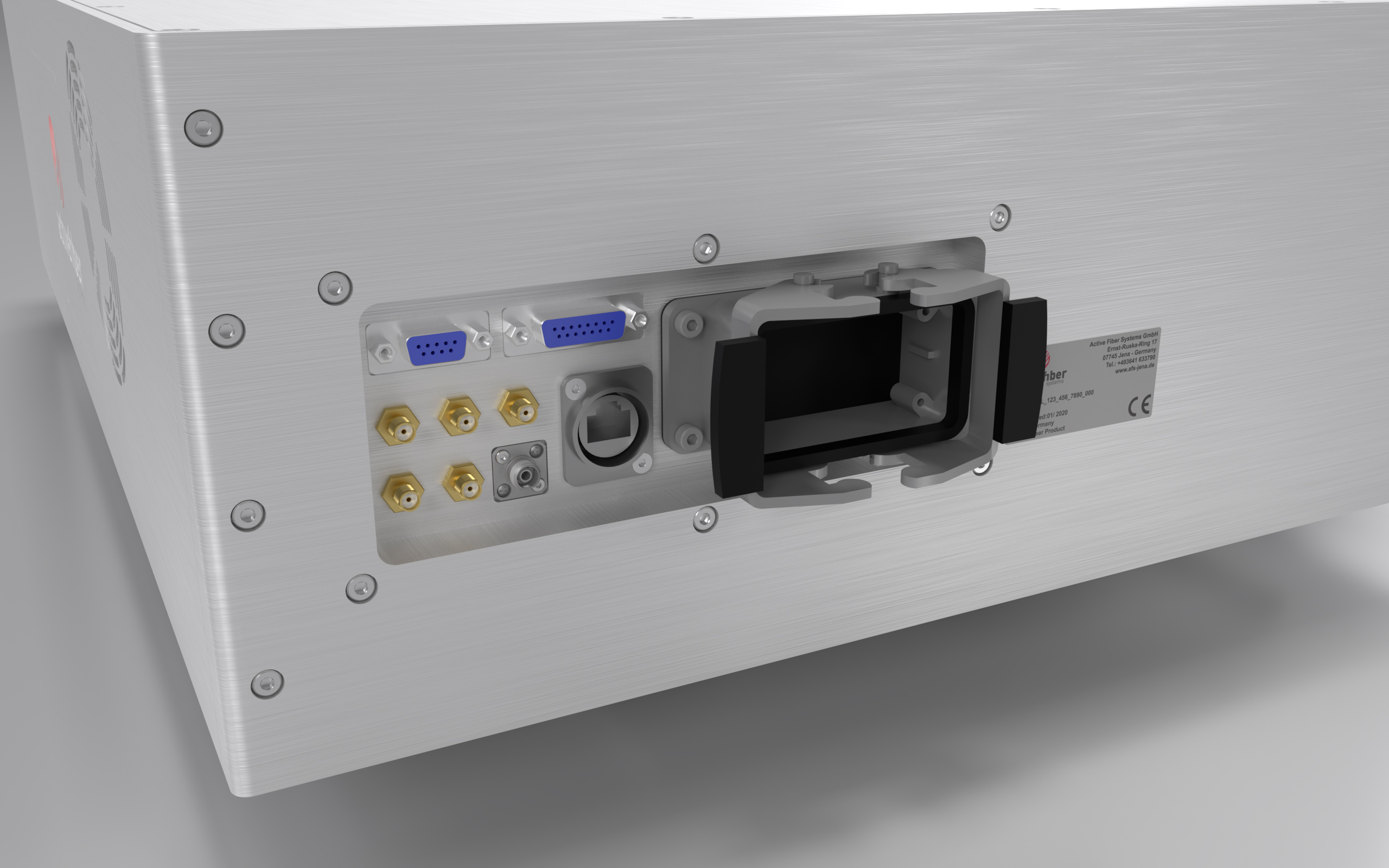

![DWFL_SRS](https://www.afs-jena.de/images/94318420-5e40-49f2-b2ae-65d7fc853258-1024x640.jpeg)
For further questions about this product, please contact us:
