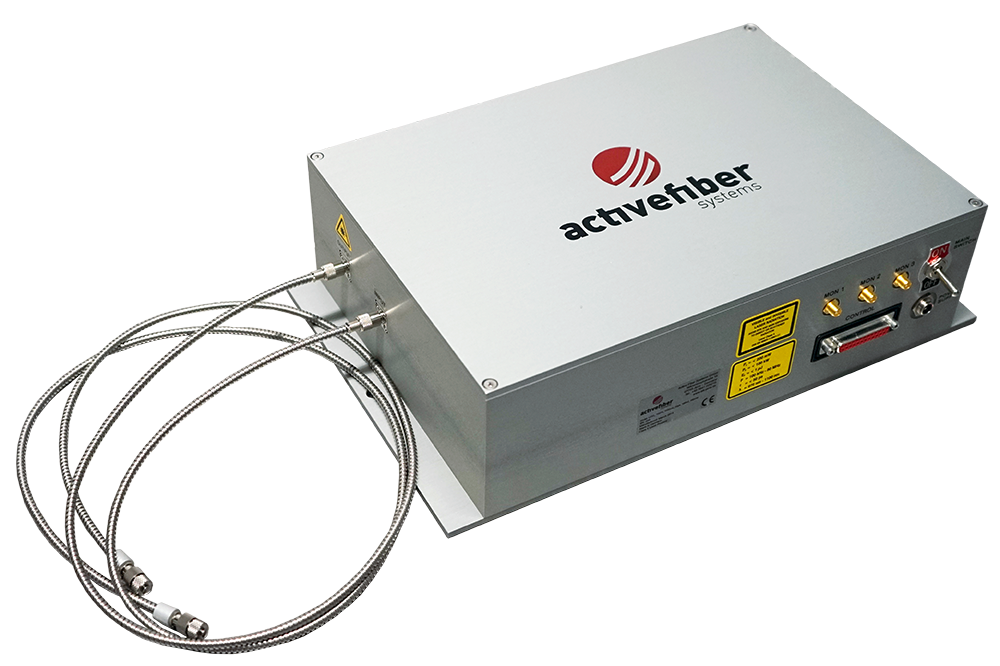

Ultracompact Ytterbium (1μm)
Mode-locked fiber lasers are compact and reliable seed sources for your application or your amplification stages. Flexible parameters in terms of pulse duration, repetition rate and performance can be realized.
Applications
- ...
View in AR-App
- SPECIFICATIONS
- DOWNLOADS
- CONTACT
The following specs show only our main platforms. We happily customize a system exactly to your needs.
| Center wavelength | 1020 nm – 1070 nm |
| Repetition rate | single shot ... 80 MHz (depending on actual configuration) |
| Pulse energy | up to 150 nJ |
| Peak power | up to 2.6 MW |
| Average power | up to 10 W |
| Pulse duration | 50 fs – 100 ps adjustable |
| Polarization | linear |
| Beam quality | fiber-coupled output or close to diffracation-limited with M²<1.2 |
| Logging | Logging of all operation parameters via control software, remote monitoring and service access |
| Additional features | Turnkey reliability, all parameters software controlled, temperature-stabilized and dust-sealed housing |
